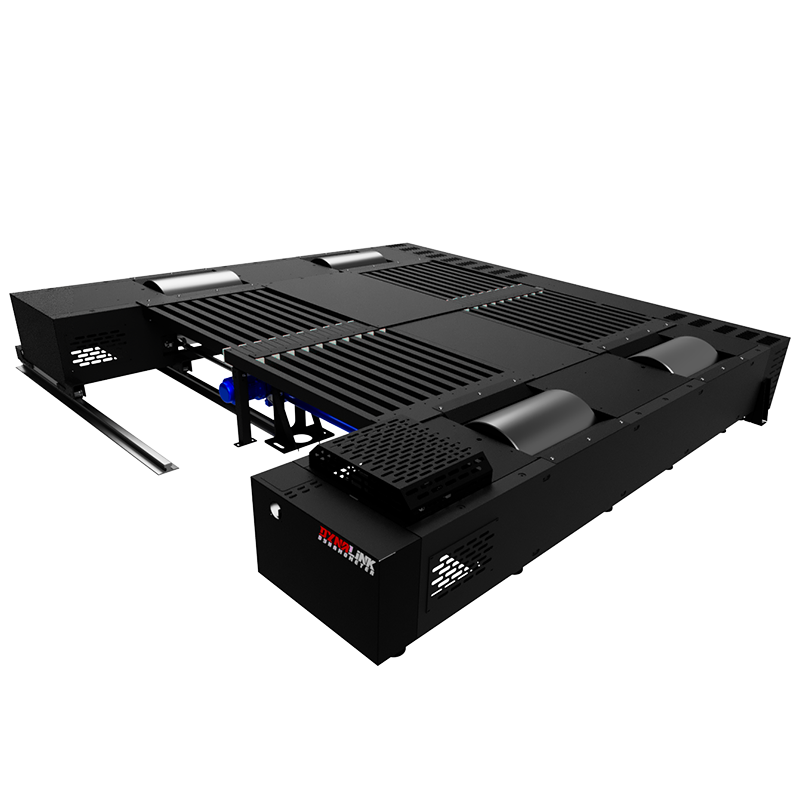

4WD-900-Lite v2

AWD-900 Lite

4WD-900-Lite v2
1/2
4WD-900Lite
AWD-Linked
Chassis Dynomometer
Our dynamometer stands out with its 520mm rollers, delivering unparalleled tire traction for superior performance.
Even the Lite version is equipped with single 2700Nm EDDY brake,more than capable of handling up to 95% of the power absorption needs for most performance vehicles.
With transient peak power absorption reaching up to 950Hp(Cold) our dyno offers exceptional value at an unbeatable price.
It’s the perfect tool to boost your business, helping you generate revenue and maximize profits.
New generation of four-wheel-drive (4WD) dynamometers
Traditional non-synchronized dynamometers, and even so-called "electronically synchronized" models, often create uneven torque distribution, forcing the vehicle’s electronic AWD system to compensate, which can lead to irreversible damage over time
These systems may seem advanced, but they rely on the vehicle's electronics to balance the load, not the dynamometer itself
In contrast, our linked synchronized dynamometer physically synchronizes the torque and speed of all four wheels through a driveshaft, eliminating strain on the vehicle's drivetrain
This ensures precise testing without risking damage to the AWD system, offering a much safer and future-proof solution for high-performance vehicles
Parameter | 4WD-950Lite |
Roller Size | 520mm |
Maximum Torque Absorption | 2700Nm (Eddy Current Brake) |
Power Range | Transient peak power absorption up to 900Hp *(Cold) |
Drive Type | Mechanical link system, permanent
|
4WD Synchronization | Propeller shaft-linked synchronization |
AWD Wheelbase (min - max) | 2300mm-3300mm |
Track width (inside - outside) | 900mm-2200mm |
Measurement Accuracy | ±3.5% |
Inertia Simulation | YES - Dyno coast down able |
Maximum Speed | 285 km/h |
Data Acquisition Rate | Up to 256kHz |
Braking System | Eddy Current Brake |
Cooling System | Air cooling * |
Compatible Vehicle Types | Light vehicles |
Weight and Dimensions | ~3100kg (4WD Lite); Dimensions see download page |
Upgrade Options and Modular Design | Modular design can upgrade to 4WD 1800-Pro version at any time |
Power Supply Requirements | Supports 110V-420VAC 50-60Hz 1-3 phase |
Warranty and Support | 1 YEAR |
Standard Key Features
RPM PICKUP CLAMP
DYNO TEST MODE
